HW-1 2nd semester

Q1. Kimbell Art museum (plans ,perspective, exterior and Interior ) .

The Kimbell Art Museum in Fort Worth, Texas .The building was designed by renowned architect Louis I. Kahn and is widelyrecognized as one of the most significant works of architecture of recent times. It is especially noted for the wash of silvery natural light across its vaulted gallery ceilings. The museum is composed of 16 parallel vaults that are each 100 feet (30.6 m) long, 20 feet (6 m) high and 20 feet (6 m) wide.

plans

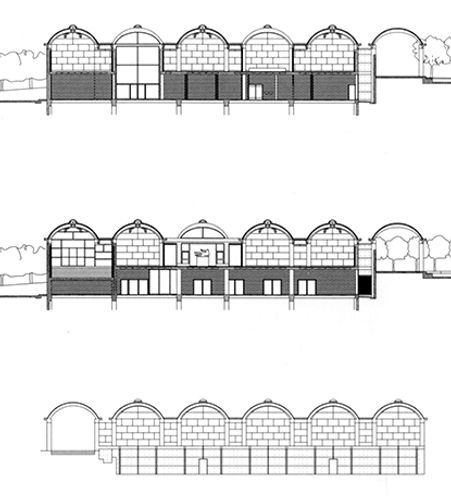

Sections

sketch design

exterior

Interior

details site , plan and elevation

Q2. British Library ( ,perspective, exterior and Interior ) .

The British Library is the national library of the United Kingdom. The library is a major research library, holding around 170 million items from many countries, in many languages and in many formats, both print and digital: books, manuscripts, journals, newspapers, magazines, sound and music recordings, videos, play-scripts, patents, databases, maps, stamps, prints, drawings

ground floor

first floor

exterior

Interior

Q3. Finland Museum in USA .

15 meters height wing consists of 4 floors each Floor show understanding of the different elements of Finland. In the fourth round images of landscapes Edition Alphenlandh, while the third Photos illustrating Finnish people either Photos illustrating the second industry, on the ground floor Third results above. When asked about working Alto, said it was difficult Be elements in Smvunh one.

Alvar Alto

Q4. National Parliament House ( plan , exterior and Interior ).

Louis Kahn National Assembly Building of Bangladesh in Dhaka is an extraordinary example of modern architecture being transcribed as a part of Bangali vernacular architecture. The geometric shapes found on the different faces of the façade add a dramatic impact to the overall composition of the building. In the assembly I have introduced a light-giving element to the interior of the plan. If you see a series of columns you can say that the choice of columns is a choice in light. The columns as solids frame the spaces of light.

plan

section

exterior

Interior

Q5. Chicago Tribune , Walter Groupies.

Within the scope of an international competition hosted by the newspaper Chicago Tribune in 1922, which invited designs for new office buildings, Walter Gropius and Adolf Meyer submitted their much admired yet unrealised design for an exceptionally modern glass and metal high-rise, which transcended all historic forms of architecture.

sketch

elevation

model

Structural System

Interior

Q6. Heinz Galinski School .

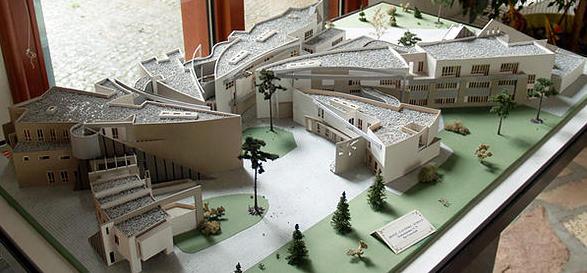

Heinz Galinski School Berlin. 1995.I absolutely love how this is designed so that it looks like it is swirling around, then it looks like it is going into a black hole.

Q7. Copacabana Beach.

Copacabana beach, located at the Atlantic shore, stretches from Posto Dois to Posto Seis. Leme is at Posto Um. There are historic forts at both ends of Copacabana beach; Fort Copacabana, built in 1914, is at the south end by Posto Seis and Fort Duque de Caxias, built in 1779, at the north end. One

curiosity is that the lifeguard watchtower of Posto Seis never existed.

Q8. kresge college

Copacabana beach, located at the Atlantic shore, stretches from Posto Dois to Posto Seis. Leme is at Posto Um. There are historic forts at both ends of Copacabana beach; Fort Copacabana, built in 1914, is at the south end by Posto Seis and Fort Duque de Caxias, built in 1779, at the north end. One

curiosity is that the lifeguard watchtower of Posto Seis never existed.
